美国HIP高压针阀技术参数
1.工作压力范围：10,000psi --150,000psi
2.连接形式：卡套连接和高压锥管连接
3.连接尺寸：Φ1/8"、Φ1/4"、Φ3/8"、Φ9/16"、Φ3/4"、Φ1"
4.材质：316不锈钢
5.工作介质：大多数气体和液体介质
6.工作温度：可达到340℃
HIP高压阀门高压管件高压接头特性：
1、阀门，管件，接头等一系列标准产品，其材质均为316不锈钢；
2、6种阀门形式，满足客户要求；
3、3种阀杆设计：可靠导向性，滚动型，针状阀杆型；
4、高压硬管规格：7种外径、其材质均采用高强度不锈钢、其工艺采用冷拔。无缝加工而成；
5、所有阀门可选择气动控制；
6、阀门的工作温度：Teflon密封材质232度、Viton密封材质176度、BUNA-N密封材质93度、Grafoil密封材质343度。

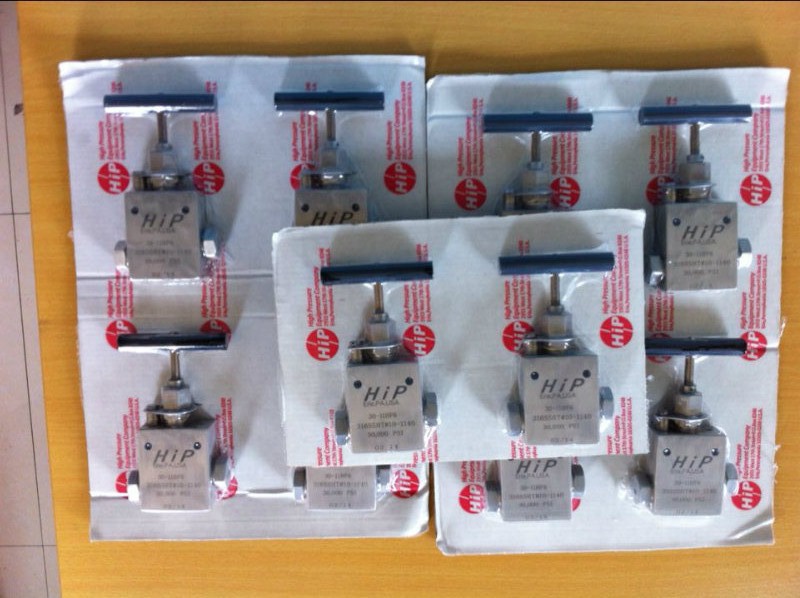

直通高压针阀
| 接管 | 型号 | psi | 连接 | 节流口(") |
D(") |
E(") | F(") | G(") | H(") | J(") | K(") | L(") | 厚度(") |
| 1/16"O.D. | 15-11AF1 | 15,000 | AF1 | 0.052 | 21/2 | 11/8 | 1/4 | 13/32 | 11/8 | 5/16 | 3/4 | 9/64 | 1/2 |
| 1/8"0.D. | 15-11AF2 | 15,000 | AF2 | 1/16 | 31/8 | 11/2 | 11/16 | 15/16 | 113/16 | 5/16 | 7/8 | 9/64 | 3/4 |
| 1/4"O.D. | 10-11AF4 | 10,000 | AF4 | 1/8 | 45/8 | 2 | 1/2 | 1/2 | 17/8 | 1/2 | 13/8 | 7/32 | 1 |
| 3/8"O.D. | 10-11AF6 | 10,000 | AF6 | 1/8 | 45/8 | 2 | 1/2 | 1/2 | 17/8 | 1/2 | 13/8 | 7/32 | 1 |
| 1/8"NPT | 10-11NFA | 10,000 | NFA | 1/8 | 43/4 | 2 | 7/8 | 7/8 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 1/4"NPT | 10-11NFB | 10,000 | NFB | 1/8 | 43/4 | 2 | 7/8 | 7/8 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 3/8"NPT | 10-11NFC | 10,000 | NFC | 1/8 | 43/4 | 2 | 7/8 | 7/8 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 1/2"NPT | 10-11NFD | 10,000 | NFD | 5/16 | 55/8 | 25/8 | 3/4 | 13/8 | 31/8 | 1/2 | 15/8 | 5/16 | 11/2 |
| 1/8"NPT | 15F-11NFA | 15,000 | NFA | 0.203 | 43/8 | 2 | 3/8 | 13/16 | 2 | 3/8 | 11/4 | 7/32 | 3/4 |
| 1/4"NPT | 15F-11NFB | 15,000 | NFB | 0.203 | 43/8 | 2 | 3/8 | 13/16 | 2 | 3/8 | 11/4 | 7/32 | 3/4 |
| 3/8"NPT | 15F-11NFC | 15,000 | NFC | 0.312 | 61/8 | 21/2 | 1/2 | 11/8 | 27/8 | 1/2 | 13/8 | 11/32 | 1 |
| 1/2"NPT | 15F-11NFD | 15,000 | NFD | 0.312 | 63/8 | 25/8 | 3/4 | 13/8 | 31/8 | 1/2 | 13/8 | 11/32 | 11/2 |
| 3/4"NPT | 10F-11NFF | 10,000 | NFF | 0.687 | 81/2 | 41/8 | 7/8 | 113/16 | 45/8 | 11/8 | 21/2 | 9/16 | 13/4 |
| 1"NPT | 10F-11NFH | 10,000 | NFH | 0.687 | 81/2 | 41/8 | 7/8 | 113/16 | 45/8 | 11/8 | 21/2 | 9/16 | 13/4 |
| 1/4"O.D. | 20-11LF4 | 20,000 | LF4 | 1/8 | 43/8 | 2 | 3/8 | 13/16 | 2 | 3/8 | 11/4 | 7/32 | 3/4 |
| 3/8"O.D. | 20-11LF6 | 20,000 | LF6 | 13/64 | 43/8 | 2 | 3/8 | 13/16 | 2 | 3/8 | 11/4 | 7/32 | 3/4 |
| 9/16"O.D. | 20-11LF9 | 20,000 | LF9 | 5/16 | 61/8 | 21/2 | 1/2 | 11/8 | 27/8 | 1/2 | 13/8 | 11/32 | 1 |
| 3/4"O.D. | 20-11LF12 | 20,000 | LF12 | 7/16 | 7 | 3 | 3/4 | 11/2 | 33/4 | 5/8 | 13/4 | 7/16 | 13/8 |
| 3/4"O.D. | 10-11LF12 | 10,000 | LF12 | 33/64 | 7 | 3 | 3/4 | 11/2 | 33/4 | 5/8 | 13/4 | 7/16 | 13/8 |
| 1"O.D. | 20-11LF16 | 20,000 | LF16 | 9/16 | 827/64 | 41/8 | 7/8 | 113/16 | 45/8 | 11/8 | 21/2 | 9/16 | 13/4 |
| 1"O.D. | 10-11LF16 | 10,000 | LF16 | 11/16 | 827/64 | 41/8 | 7/8 | 113/16 | 45/8 | 11/8 | 21/2 | 9/16 | 13/4 |
| 1/8"O.D. | 30-11HF2 | 30,000 | HF2 | 1/16 | 31/4 | 11/2 | 11/16 | 15/16 | 113/16 | 5/16 | 7/8 | 9/64 | 3/4 |
| 1/4"O.D. | 30-11HF4 | 30,000 | HF4 | 3/32 | 53/16 | 2 | 5/8 | 1 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 3/8"O.D. | 30-11HF6 | 30,000 | HF6 | 1/8 | 53/16 | 2 | 5/8 | 1 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 9/16"O.D. | 30-11HF9 | 30,000 | HF9 | 1/8 | 55/8 | 25/8 | 1 | 17/16 | 27/8 | 1/2 | 13/8 | 7/32 | 11/2 |
| 1"O.D. | 30-11HF16 | 30,000 | HF16 | 7/16 | 827/64 | 41/8 | 15/16 | 111/16 | 47/16 | 11/8 | 21/2 | 9/16 | 13/4 |
| 9/16"O.D. | 40-11HF9 | 40,000 | HF9 | 1/8 | 55/8 | 25/8 | 1 | 17/16 | 27/8 | 1/2 | 15/8 | 7/32 | 11/2 |
| 1/8"O.D. | 60-11HF2 | 60,000 | HF2 | 1/16 | 53/16 | 2 | 5/8 | 15/16 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 1/4"O.D. | 60-11HF4 | 60,000 | HF4 | 1/16 | 53/16 | 2 | 5/8 | 1 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 3/8"O.D. | 60-11HF6 | 60,000 | HF6 | 1/16 | 53/16 | 2 | 5/8 | 1 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 9/16"O.D. | 60-11HF9 | 60,000 | HF9 | 1/16 | 55/8 | 25/8 | 1 | 17/16 | 27/8 | 1/2 | 13/8 | 7/32 | 11/2 |
| 1/4"O.D. | 100-11XF4 | 100,000 | XF4 | 1/16 | 5 | 25/8 | 3/4 | 11/16 | 21/2 | 1/2 | 15/8 | 7/32 | 11/2 |
| 3/8"O.D. | 150-11XF6 | 150,000 | XF9 | 1/16 | 5 | 31/2 | 7/8 | 13/16 | 25/8 | 1/2 | 15/8 | 7/32 |
11/2 |
