| 品牌：奥金瑞 | 型号：GWF-3S01 | 传输速率：150MBPS |
| 接口类型：USB | 无线标准：IEEE 802.11g、IEEE 802.11b、802.11n | 工作频段：2.4G |
| 支持协议：802.11b/g/n | 覆盖范围：300米 | 网络类型：wifi |

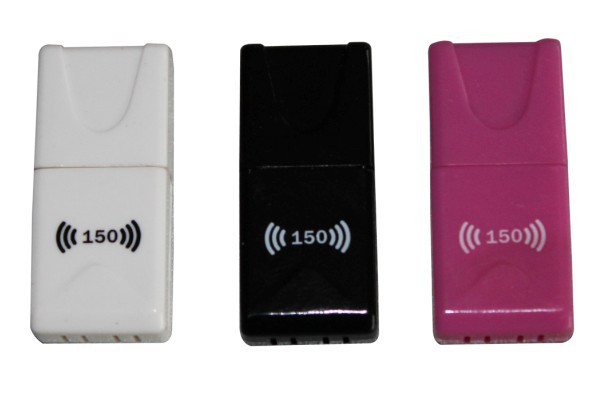

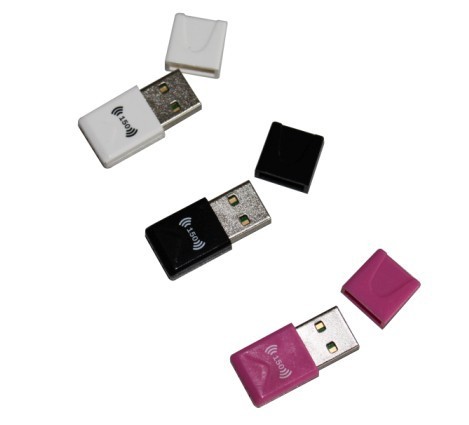

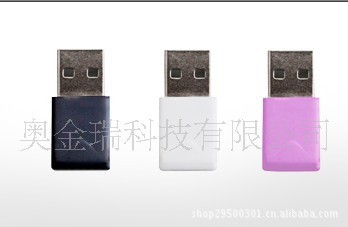

GWF-3S01
主要性能:
802.11b:1,2,5.5,11Mbps;
802.11g;6,9,12,18,24,36,48,54Mbps;
802.11n:(20MHz)MCSO-7,高达 72Mbps , (40MHz)MCSO-7,高达 150Mbps
调制模式：OFDM
峰值速率： 150Mbps
峰值吞吐率：90Mbps
智能电源管理功能
安全模式：802.11 b/g/n,WPA,WPA2,WMM,WMM-PS，WHQL,Cisco CCX
| Hardware | |
| Chipset | Ra |
| Host interface | USB2.0/1.1, type A |
| LEDS | |
| RF | |
| Antenna | Built-in PCB antenna |
| Frequency | 2412~2483.5MHz, ISM band. |
| Transmit Power | 802.11b:19+/-1.5dBm; 802.11g:14+/-1.5dBm;802.11n:(HT20),14+/-1.5dBm,802.11n:(HT40),14+/-1.5dBm. |
| Receive Sensitivity | 802.11b:-84+/-1.5dBm@11Mbps; 802.11g:-69+/-1.5dBm@54Mbps 802.11n:(HT20),-67dBm@M8C7,802.11n:(HT40),-63dBm@MSC7. |
| Software | |
| Operation System | Windows CE/2000/XP/Vista; Linux 2.6.X;Mac OS X |
| Security | WEP 64/128bit,WPA,WPA2,802.1X ,and802.11i Cisco CCS V1.0,2.0 and V3.0 Compliant. |
| Operation Conditions | |
| Voltage Range* | DC 5.0V±5%,<130mA |
| Operating Temperature | 0℃-40℃ |
| Storage Temperature | -20℃-70℃ |
| Operating Humidity | RH 95%(Non-Condensing) |
| Storage Humidity | RH 95%(Non-Condensing) |
