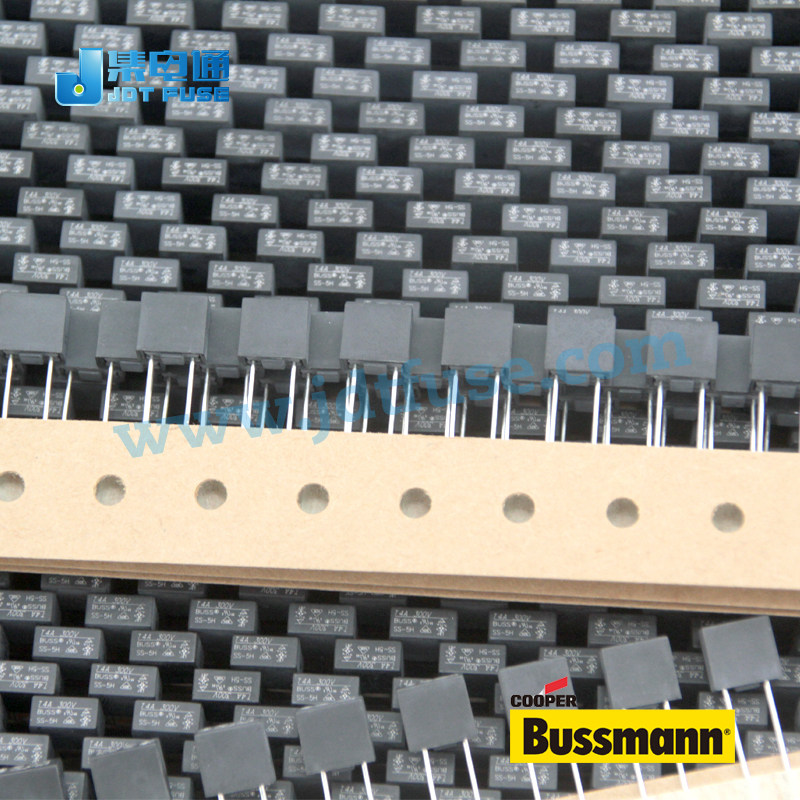

方形慢断8*4微型保险丝SS-5H-6.3A-APH巴斯曼
微型保险丝有别于传统的玻璃管式保险丝和汽车中的片型保险丝等，用于设备内部印制板和IC等的保护、输入输出电路的保护等，特点是体积小、不易破碎、自动化安装等，广泛应用数码相机、笔记本、手机等数码产品中。
质量保证，厂家直销价格优惠
量大可全国包邮！
免费提供样品
|

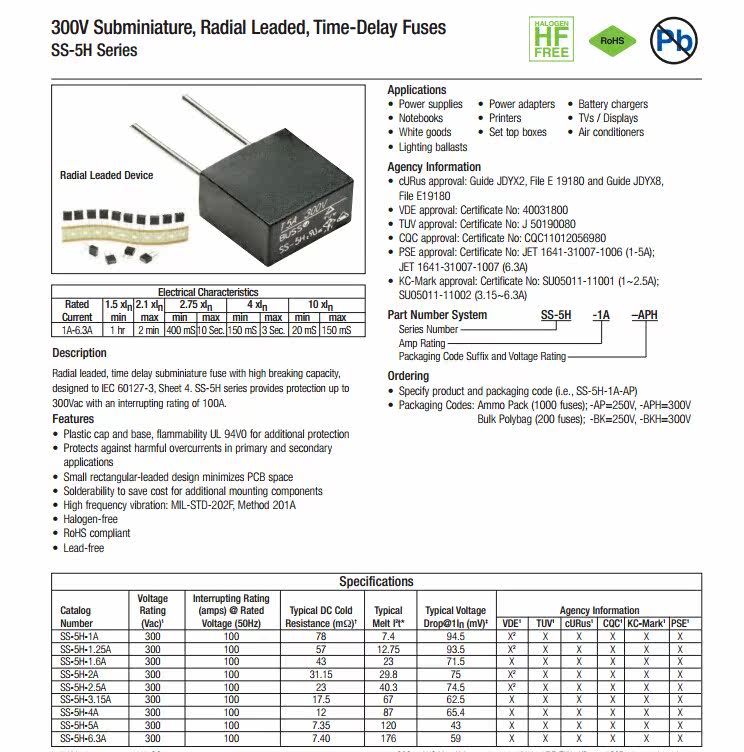

Catalog Number |
Voltage Rating (Vac)1 | Interrupting Rating (amps) @ Rated Voltage (50Hz) |
Typical DC Cold Resistance (mΩ)† |
Typical Melt I2t* |
Typical Voltage Drop@1In (mV)‡ |
Agency Information | |||||
| VDE1 | TUV1 | cURus1 | CQC1 | KC-Mark1 | PSE1 | ||||||
| SS-5H-1A | 300 | 100 | 78 | 7.4 | 94.5 | X2 | X | X | X | X | X |
| SS-5H-1.25A | 300 | 100 | 57 | 12.75 | 93.5 | X2 | X | X | X | X | X |
| SS-5H-1.6A | 300 | 100 | 43 | 23 | 71.5 | X | X | X | X | X | X |
| SS-5H-2A | 300 | 100 | 31.15 | 29.8 | 75 | X2 | X | X | X | X | X |
| SS-5H-2.5A | 300 | 100 | 23 | 40.3 | 74.5 | X2 | X | X | X | X | X |
| SS-5H-3.15A | 300 | 100 | 17.5 | 67 | 62.5 | X | X | X | X | X | X |
| SS-5H-4A | 300 | 100 | 12 | 87 | 65.4 | X | X | X | X | X | X |
| SS-5H-5A | 300 | 100 | 7.35 | 120 | 43 | X | X | X | X | X | X |
| SS-5H-6.3A | 300 | 100 | 7.40 | 176 | 59 | X | X | X | X | X |
X |
